Key Clamp Base Plate (A012)

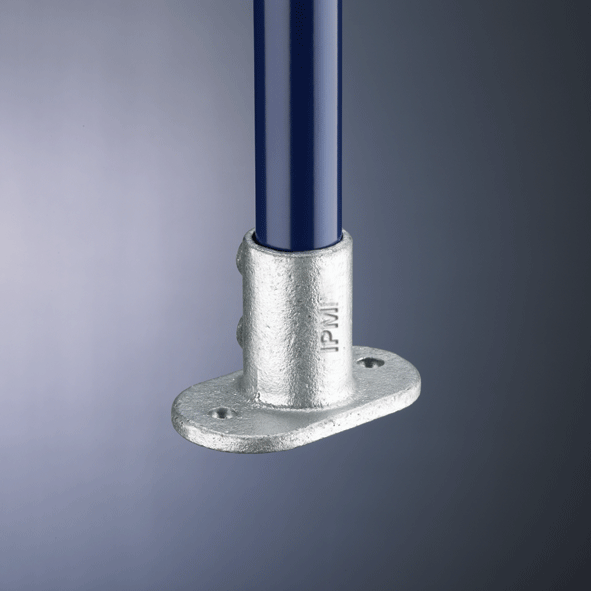

Standard Key Clamp Base Plate / Flange - 2 Hole
Key Clamp Base Plate (A012)

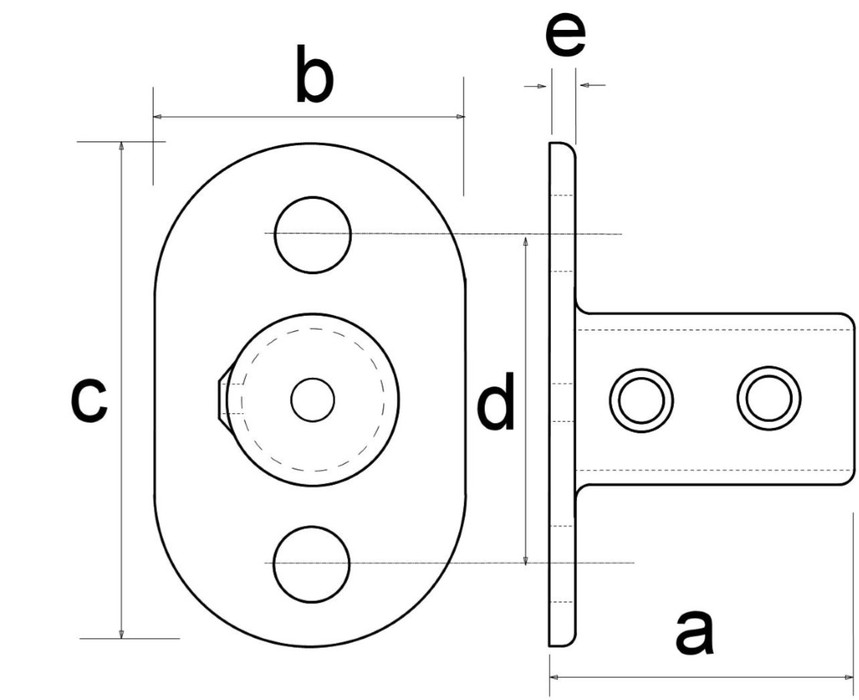

Key Clamp Base Plate (A012) Dimensions
| Ref | Size | Dim 'a' | Dim 'b' | Dim 'c' | Dim 'd' | Dim 'e' | Dim 'f' | Hole Dia. |
Kg |
| A012/5 | 26.9mm | 60 | 52 | 105 | 77 | 8 | N/A | 11 | 0.42 |
| A012/6 | 33.7mm | 90 | 65 | 130 | 90 | 9 | N/A | 14 | 0.77 |
| A012/7 | 42.4mm | 102 | 76 | 140 | 100 | 9 | N/A | 14 | 1.03 |
| A012/8 | 48.3mm | 90 | 90 | 150 | 115 | 11 | N/A | 14 | 1.26 |
| A012/9 | 60.3mm | 127 | 102 | 165 | 127 | 11 | N/A | 17 | 1.78 |
This key clamp fitting is a structural base plate for all aspects of vertical post support. When using this fitting as the base plate for a key clamp handrail / guardrail system, the fitting should be positioned with holes 90° to the line of the rails to give maximum strength. The holes in the base are large enough to allow mechanical or chemical anchors to be used.
